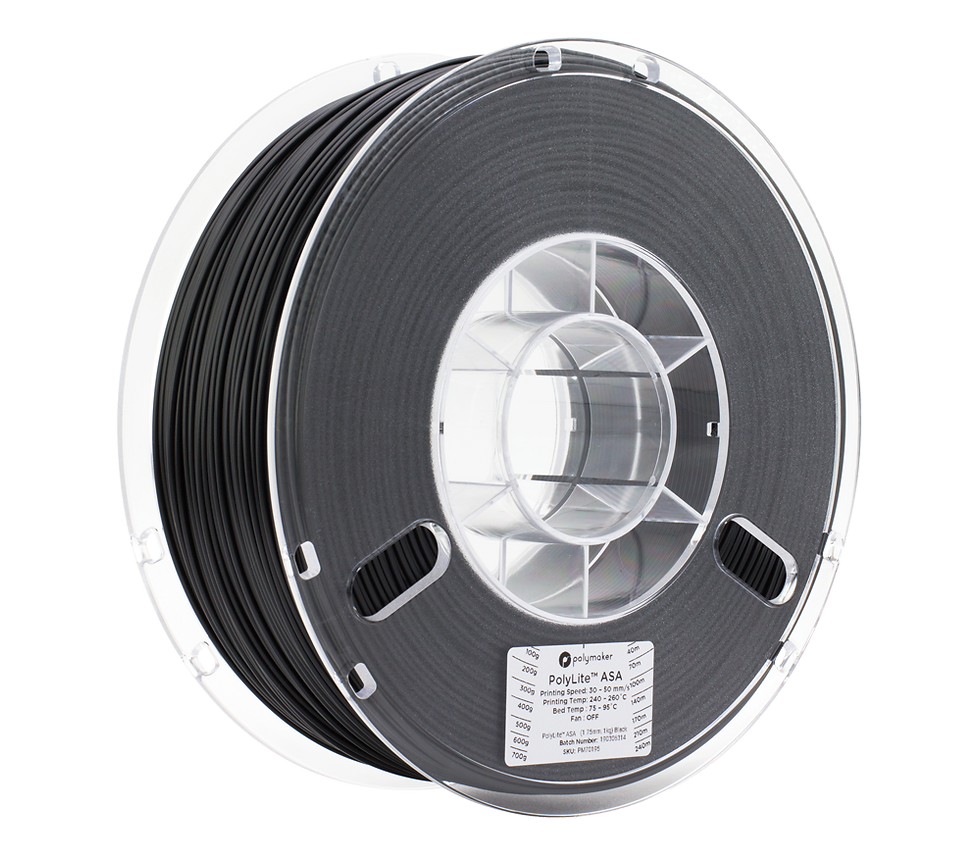

PolyLite™ ASA

PolyLite™ ASA

AU$54.50Price
Excluding GST

                                                    PolyLite™ ASA



PolyLite™ is a family of 3D printing filaments made with the best raw materials to deliver exceptional quality and reliability. PolyLite™ covers the most popular 3D printing materials to meet your everyday needs in design and prototyping.
PolyLite™ ASA is an alternative to ABS with an improved weather resistance. Its UV resistance and excellent mechanical properties make it the perfect choice for real life applications.


                                                        Features:
UV Resistant - With excellent weather resistance (UV, water and heat) PolyLite™ ASA is the ideal choice for printing parts that must survive in the harsh outdoors. Most plastics tend to become brittle and their colour turns yellow when exposed to UV radiation or sunshine but with PolyLite™ ASA the appearance and mechanical properties of your 3D prints are not influenced negatively by UV light.


Water Resistant - PolyLite™ ASA is resistant to Environmental Stress Cracking (ESC). This allows printed parts to face the outdoors, high humidity and rain over long periods of time.


ABS Alternative - PolyLite™ ASA performs better in both thermal and mechanical properties compared with general ABS filaments. It also features a Vicat softening temperature of 105􀔨 which slightly exceeds ABS.


Excellent Printing Quality - PolyLite™ ASA prints parts with a beautiful matte surface finish, suitable for printing production parts. Made with only the highest quality materials, PolyLite™ ASA delivers excellent printing quality and reliability.


Uncompromised Quality - With Polymaker's industry leading quality control process and rigorous in-house testing, you can rest assured that PolyLite™ ASA will produce beautiful, reliable and accurate printed parts.

  • Physical Properties

    Density ASTM D792 (ISO 1183, GB/T 1033) 1.1 (g/cm3 at 21.5°C)
    Glass transition temperature DSC, 10 °C/min 97.8 (°C)
    Vicat Softening temperature ASTM D1525 (ISO 306 GB/T 1633) 105.3 (°C)
    Melt index 220°C, 10kg 25 (g/10 min)

  • Mechanical Properties

    Young’s modulus (X-Y)
    ASTM D638 (ISO 527, GB/T 1040)
    2379 ± 157 (MPa)
    Tensile strength (X-Y)
    ASTM D638 (ISO 527, GB/T 1040)
    43.8 ± 0.8 (MPa)
    Elongation at break (X-Y)
    ASTM D638 (ISO 527, GB/T 1040)
    6.7 ± 0.6 (%)
    Bending modulus (X-Y)
    ASTMD790 (ISO 178, GB/T 9341)
    3206 ± 108 (MPa)
    Bending strength (X-Y)
    ASTMD790 (ISO 178, GB/T 9341)
    73.4 ± 2.1 (MPa)
    /m2)
    Charpy impact strength (X-Y)
    ASTM D256 (ISO 179, GB/T 1043)
    10.3 ± 0.4 (kJ
    Tensile strength (Z)
    ASTM D638 (ISO 527, GB/T 1040)
    27.4 ± 1.8 (MPa)
    All testing specimens were printed under the following conditions:
    nozzle temperature = 260 °C, printing speed = 50 mm/s, build plate temperature = 80 °C, infill = 100%
    All specimens were conditioned at room temperature for 24h prior to testing
    Recommended printing conditions
    Parameter
    Nozzle temperature
    240 - 260 (°C)
    Build Surface material
    BuildTak®
    Build surface treatment
    Magigoo
    Build plate temperature
    75 - 95 (°C)
    Cooling fan
    Turned off
    Printing speed
    30 - 50 (mm/s)
    Raft separation distance
    0.15 – 0.20 (mm)
    Retraction distance
    1 - 3 (mm)
    Retraction speed
    20 - 40 (mm/s)
    Recommended environmental temperature
    50 - 70 (°C)
    Threshold overhang angle
    50 (°)
    Based on

  • Recommended printing conditions

    Nozzle temperature 240 - 260 (°C)
    Build Surface material BuildTak®
    Build surface treatment Magigoo
    Build plate temperature 75 - 95 (°C)
    Cooling fan Turned off
    Printing speed 30 - 50 (mm/s)
    Raft separation distance 0.15 – 0.20 (mm)
    Retraction distance 1 - 3 (mm)
    Retraction speed 20 - 40 (mm/s)
    Recommended environmental temperature 50 - 70 (°C)
    Threshold overhang angle 50 (°)
